RENDL

FLATLINE 60 FOR 3-CIRCUIT TRACKS

3-circuit track system

178.00 EUR

Sale On the way

VAT included.

Linear luminaire with space lighting for 3-circuit tracks. On the adapter of the luminaire it is possible to set different light output: 14W, 16W, 18W or 20W. These lamps are not possible to use with recessed tracks.

R13731

white

Out of stock

CURRENTLY SOLD OUT

Show suitable replacements

Shipping: FREE

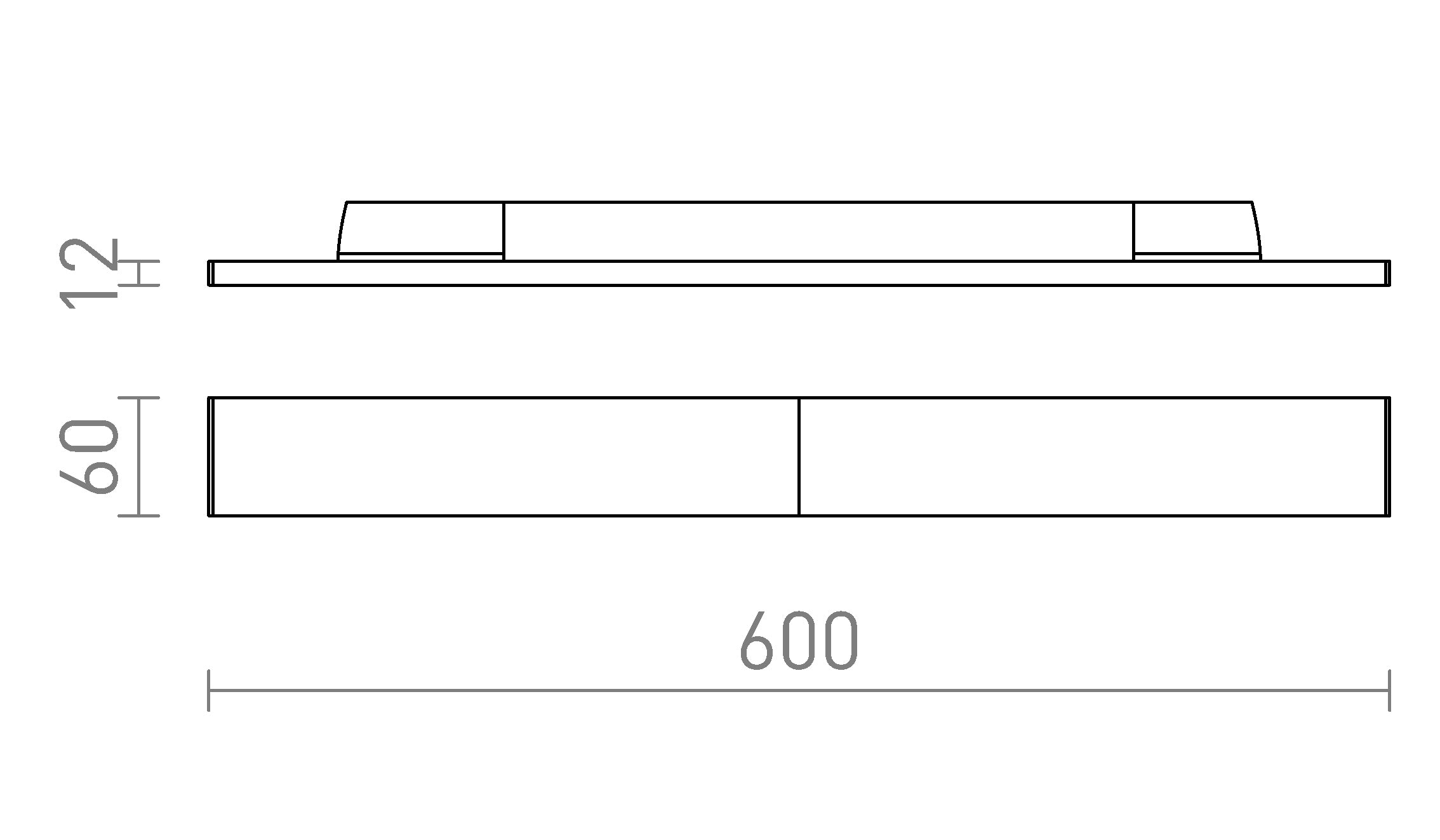

Product sketch

Manual

3D model

Product sheet

Light curves

Energy Label

View full details

FLATLINE 60 FOR 3-CIRCUIT TRACKS

FLATLINE 60 for 3-circuit tracks is a designated system element for the 3f rail system. In the assembly, it works as part of a spot solution that helps direct the light exactly where it is needed.

Compatibility and use in the system

This is a component for the 3f track system, not a separate fixture. You can use it to complete a specific part of the rail route and connect it as part of the spot configuration according to the selected space layout.

Component key properties for 3f rail system FLATLINE 60 for 3-circuit tracks

Luminous flux of 3200 lm to illuminate the desired zone.
Chromaticity temperature 3000 K for warm white light.
A light source is included in the package, assembly is easier.
The power transformer is included in the package for direct installation.
90° beam angle for targeted light scattering.

Technical context and installation

It uses a 230 V power supply for normal connections, so it can easily be integrated into a standard installation. When planning placement and assembly, also consider the 1.1/6/60 dimensions, which affect how the component will connect in a specific assembly.

Related categories

Parameters

FLATLINE 60 for 3-circuit tracks white 230V LED 20W 90° 3000K

Lumen 3200 lm

Wattage 20.0 W

Kelvin 3000 K

Height 1,1 cm

Length 60 cm

Weight 578.0 g

Beam angle 90°

Lifetime 60000 hours

Voltage 230V

Integrated LED Yes

EAN 8595685425061
