Garage lights

Garage lighting must provide sufficient brightness, be resistant to dust and moisture, and ensure long-lasting reliable operation even under demanding conditions. Today, garages are often used not just for parking, but also as workshops or storage spaces, so well-designed garage lights are essential for safety and comfort while working.

Quality garage lights depend on the size of the space, ceiling height, and intended use. Properly planned garage lighting takes into account not only overall brightness but also even light distribution and fixture durability. The lighting needed for a small 18 m² garage differs from that required for a double garage of 35–40 m². A key factor is the long-term stability of the LED output, as garage lights operate in environments with temperature fluctuations and higher dust levels.

The Role of Garage Lights in the Space

Garage lights primarily serve as the main task lighting. They must provide an even light level for safe parking, movement around the vehicle, and working at a bench. Larger garages benefit from dividing lighting into multiple runs to avoid dark spots and ensure consistent illumination throughout the area.

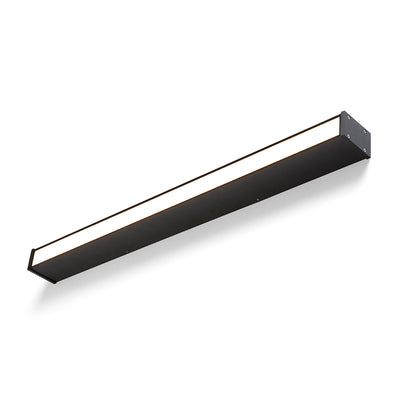

A common solution is a linear ceiling light or an array of fixtures evenly spaced across the ceiling. In narrower garages, lights arranged in two parallel rows minimize shadows along the vehicle sides. A frequent mistake is using a single central fixture, which creates dark corners and uneven garage lighting.

Technical Specs of Garage Lighting and Their Practical Impact

Luminous flux (lumens) is the fundamental parameter. For a 20 m² garage, we recommend at least 4,000–6,000 lm, corresponding to average illuminance around 200–300 lx. If the garage is used as a workshop, lighting levels up to 400 lx in work zones ensure adequate light for detailed tasks.

Color temperature is typically set between 4,000–5,000 K. Neutral to cool light promotes better visibility and precision during work. A CRI of ≥ 80 is sufficient for general use, while higher values are preferable for detailed activities.

Light distribution should be wide and uniform. A linear garage light with a diffused cover reduces harsh shadows and provides smooth light transitions across the space. Point sources without diffusion may cause glare when looking up or when doors are open, negatively affecting comfort and safety.

Glare control is especially important where daylight contrasts with artificial light. Fixtures with opal covers or microprismatic optics enhance visual comfort and spatial perception stability.

IP rating is crucial for garage lighting. For most indoor garages, a minimum of IP44 is recommended; for dusty or partially outdoor environments, IP65 is preferred. Higher ratings protect electronics from dust and moisture, extending system lifespan.

LED thermal management impacts long-term performance stability. Garage lights must be engineered to withstand temperature changes to prevent gradual lumen degradation.

Dimming capability is not always necessary but can be beneficial in multi-use spaces. If dimmable lighting is planned, compatibility with dimmers should be addressed during the electrical design phase.

Practical Layout Tips for Garage Lighting

A 36 m² double garage with a 2.5 m ceiling might use four linear fixtures rated at 1,500 lm each, arranged in two parallel rows. Spacing of about 1.5–2 m ensures even lighting without dark patches, delivering balanced illumination throughout the garage.

A common error is undersizing the lighting based on the premise that the garage is not a living space. However, insufficient light reduces safety and comfort, so garage lighting should be designed with ample margin.

We recommend assigning garage lights to a dedicated circuit during electrical planning and adding local task lighting above the workbench if needed. This setup increases flexibility and simplifies future maintenance.

Build Quality and Long-Term Value

Design is secondary for garage lights; durability is paramount. A robust housing made from polycarbonate or aluminum protects the light source from damage while aiding heat dissipation.

High-quality garage lighting maintains stable lumens over thousands of operating hours. Properly specified garage lights with suitable IP protection and adequate output create a system that supports safe and functional use over time without frequent interventions.
